Insulation

Insulation

Mid-States Asphalt manufactures a full line of woodfiber and perlite tapered insulation panels, cant strip and tapered edge strip. Mid-States tapered insulation is used in a wide variety of built-up roofing (BUR) and single ply roofing applications to help create positive drainage and prevent water from ponding. While 1/2”, 1/4” & 1/8” slopes are standard, special inclines are also available.Other sizes available include 1/16", 3/16" and 3/8". Mid-States tapered insulation is available for most warranted jobs.

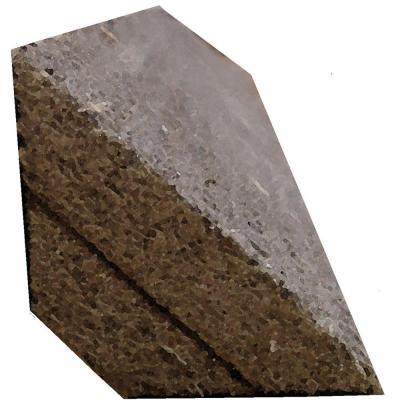

Cant Strip

Cant Strip

  • Factory fabricated from roof insulation board.
  • Cut at angles that provide a true 45° angle between horizontal and vertical surfaces.
  • All cant strips lengths are 48”.
  • Easy to fabricate for installation with most types of roof systems.
  • Strips are available in 3", 4", 5" and 5 3/4" (76mm, 102mm, 127mm and 146mm) nominal sizes
Tapered Edge

Tapered Edge

  • Factory fabricated from roof insulation board.
  • Cut on angles that slope from zero on one edge to ½” to 2" on the opposite edge.
  • Designed for smooth transition from lower to higher elevations.
  • Easy to fabricate for installation with most types of roof systems.
  • Available in bundles 48" in length.

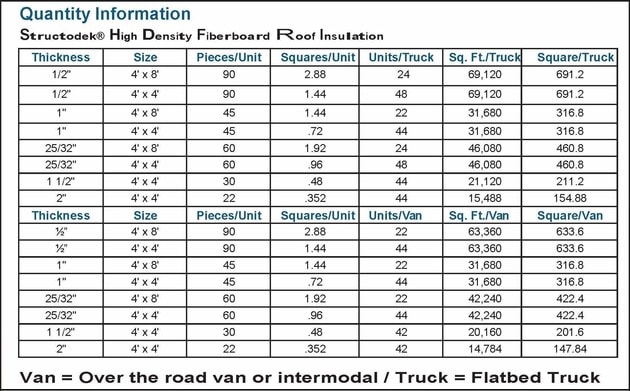

Mid-States Fabricated Products Packaging Information
